Waversa Systems WSlim DS Analogue to Digital Converter

This is a Analogue to Digital Converter Only - Designed for the WSlim LITE

The Waversa WSlim DS is an extension to the WSlim LITE 2.0 Amplifier Hub bringing additional inputs and functionality to the system. Including RCA and XLR analogue inputs, HDMI in and out, a phono stage for MM and MC carts, a headphone output and an SSD drive slot for optional music storage.

Main features

• Docking Station for WSlim LITE
• Analog Inputs

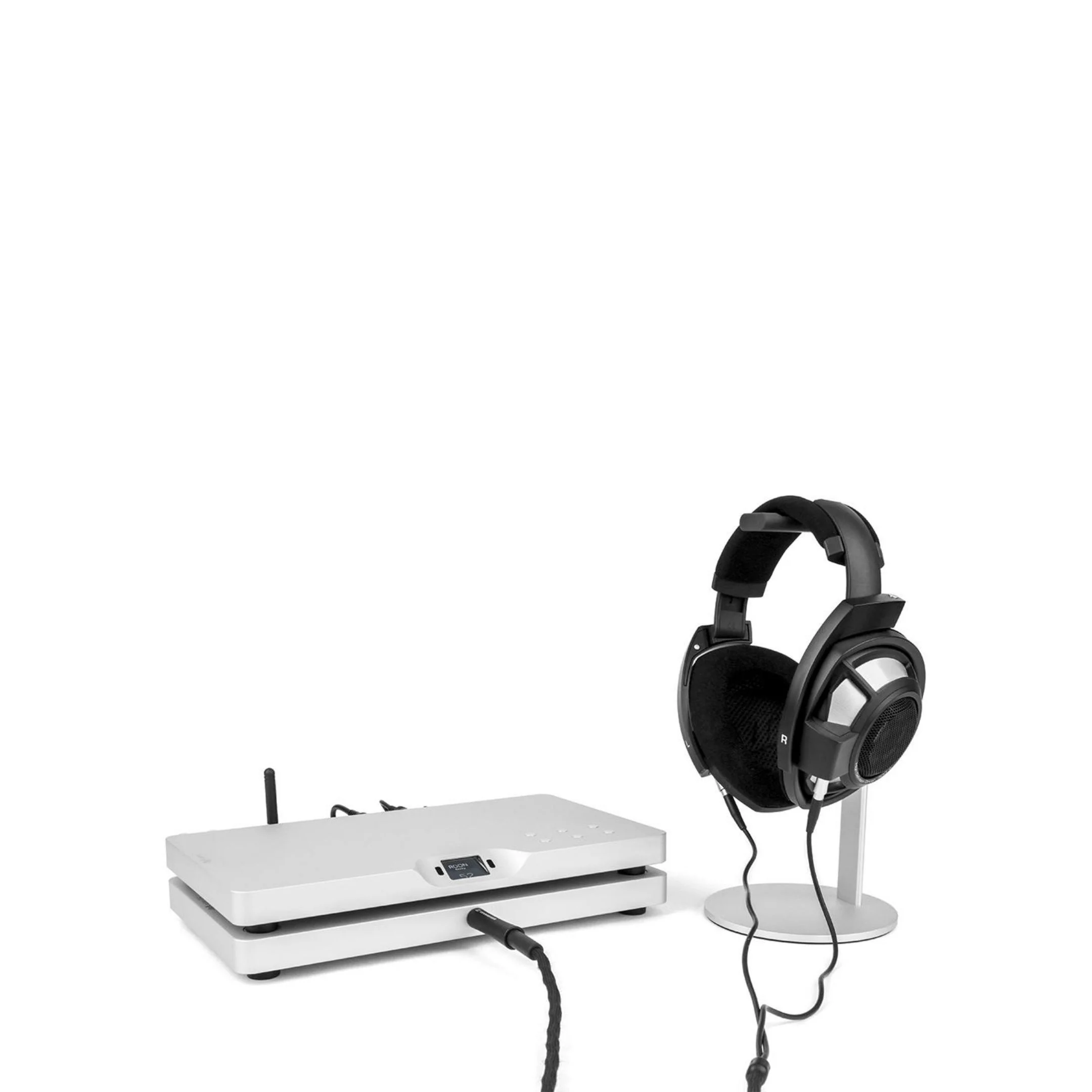

• Headphone Output

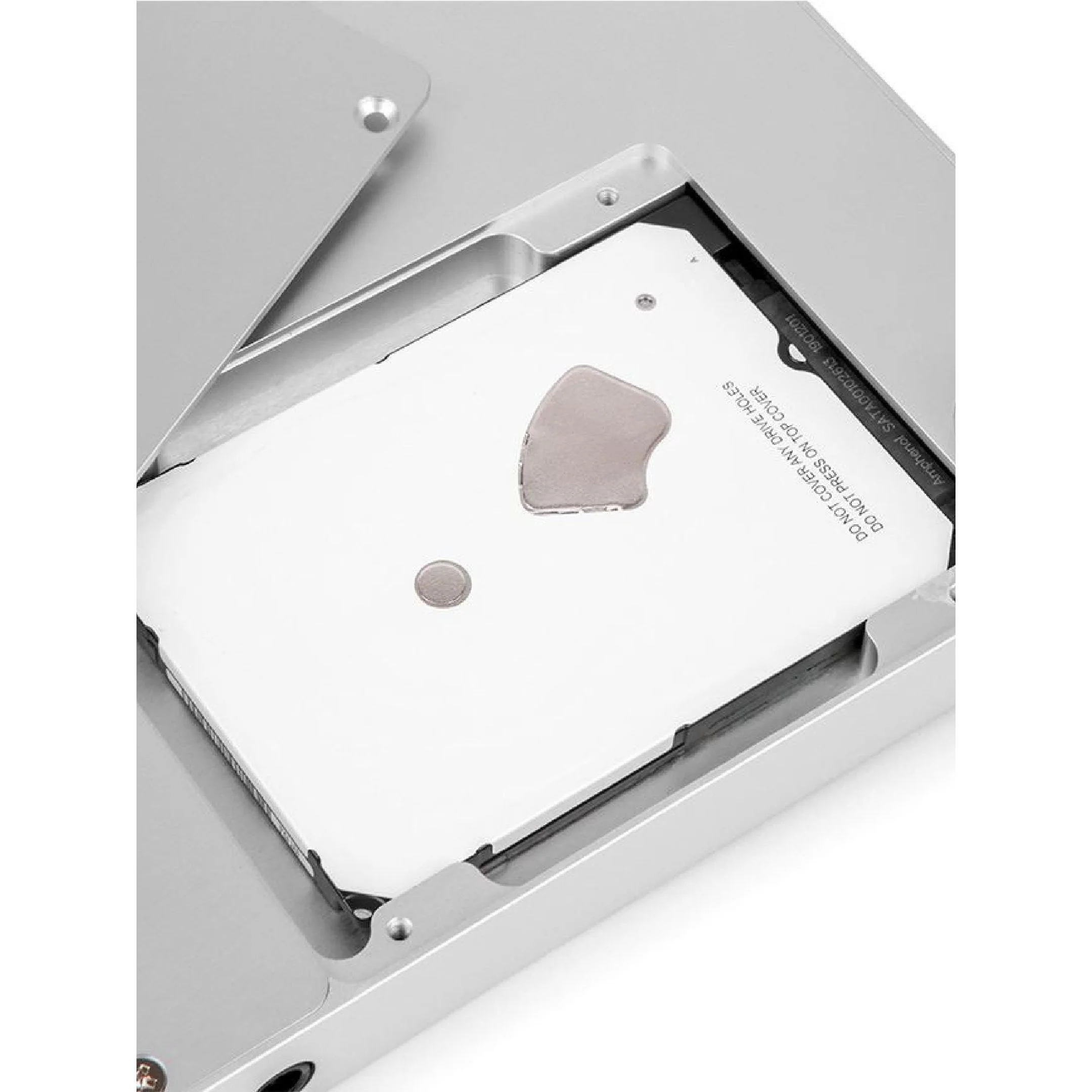

• 2.5” SSD/HDD Music Storage

Exclusive technologies

• DC 24V Cascade with WSlim LITE

Specs

Physical characteristics

• Chassis: Aluminium
• Colour: Silver

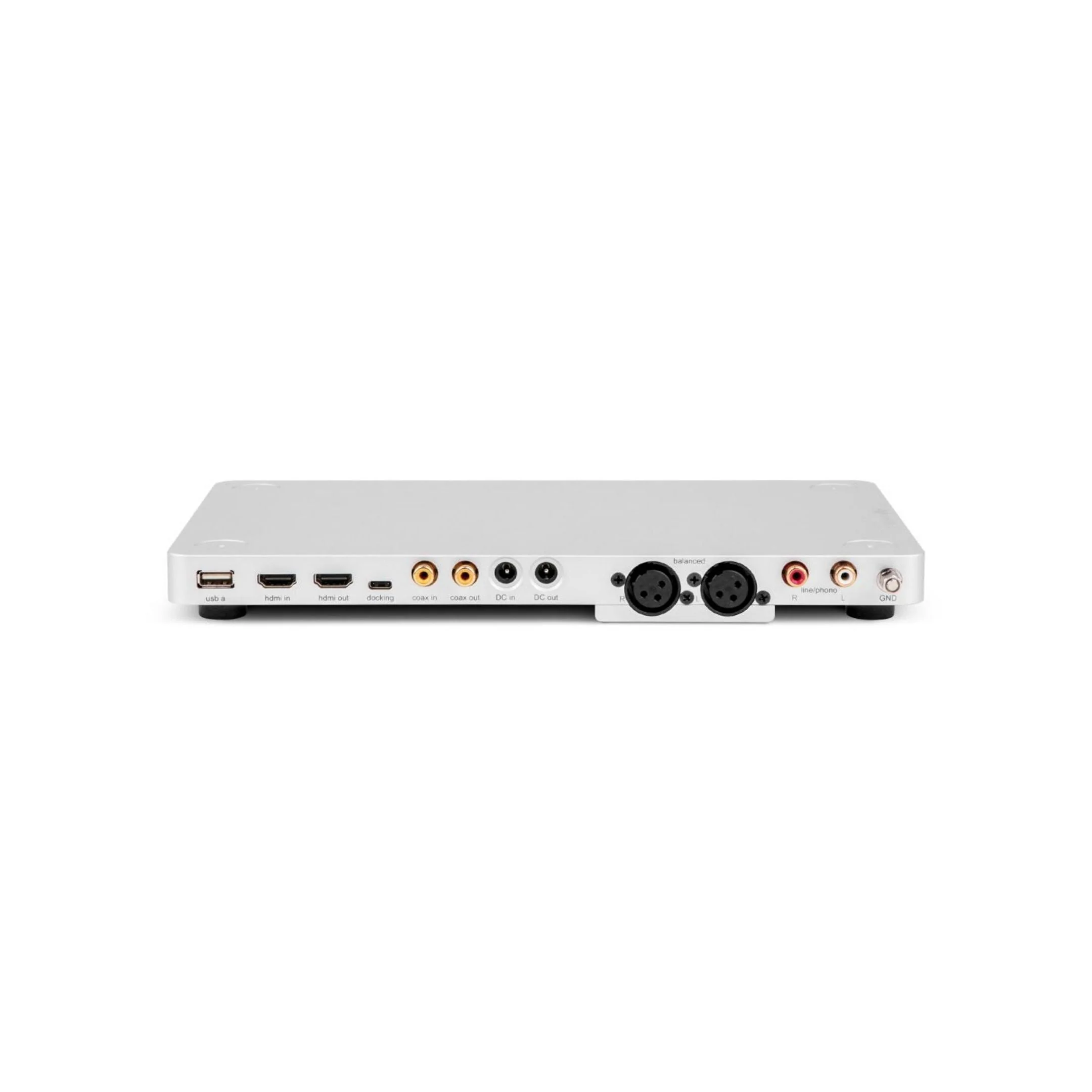

• Inputs: HDMI ARC, Balanced XLR, Unbalanced RCA, MM/MC RCA Phono
• Outputs: HDMI, Unbalanced RCA (Digital link), Headphone 6.3mm
• I/O: USB-A (Control), Ground
• Dimension:W300xD220xH20mm
• Weight: 4 kg / 8.8 lbs.
• Power supply: 24V Adapter 90-120V AC / 180-240 VAC @ 50Hz

Supported audio / video formats

• COAX: up to 24/192KHz
• USB/NET: PCM 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
• DSD64
• DLNA Renderer: WAV, AIFF, OGG, FLAC up to 24 bits / 192 kHz

Specifications

• Linux 4.0x with 1GHz ARM Cortex A7 Processor
• Ultra Low Power Universal Serial Bus Audio Class 2.0 • High Precision Clock Dual MEMS 44.1/48
