Quad ESL 2912 Electrostatic Loudspeakers

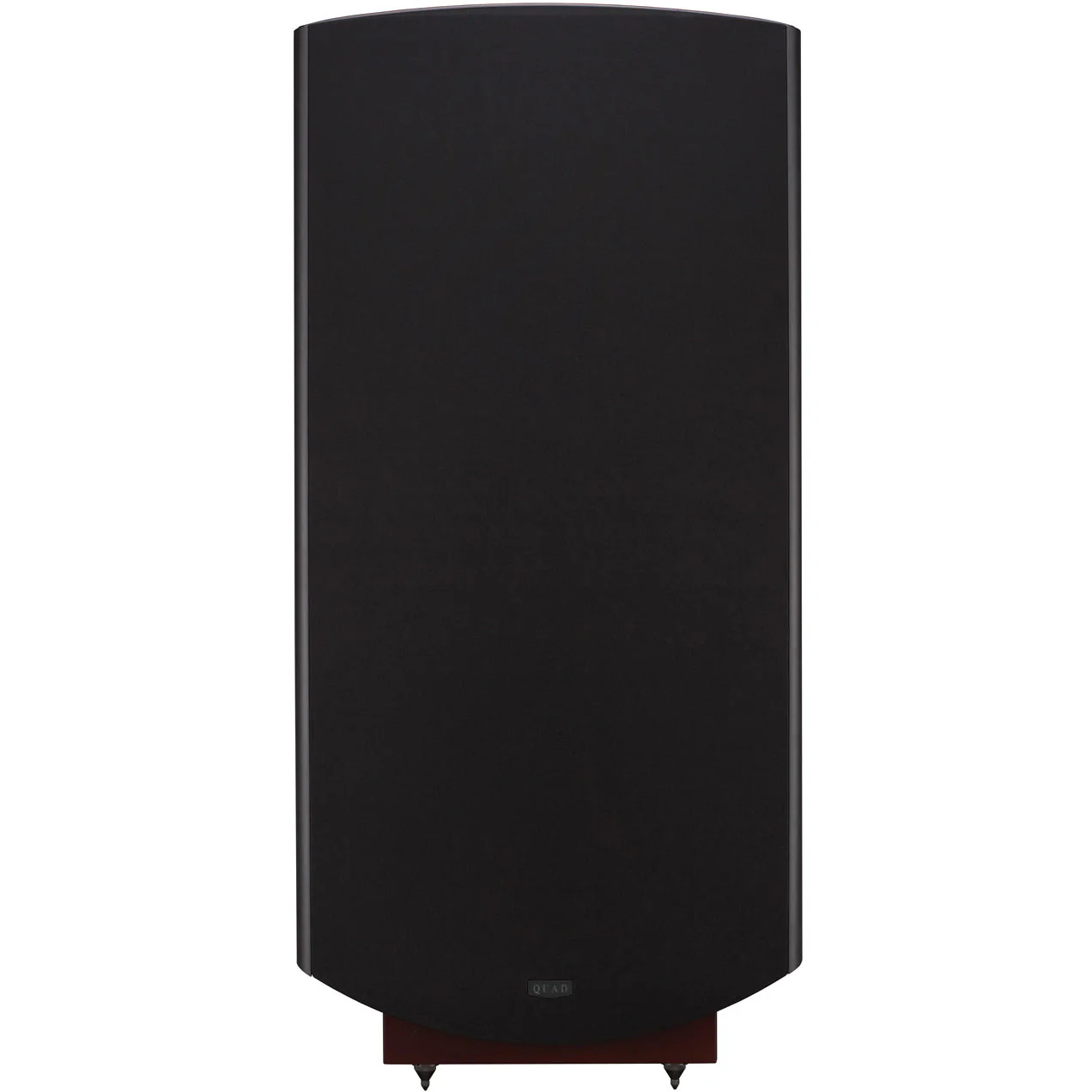

Product image 1

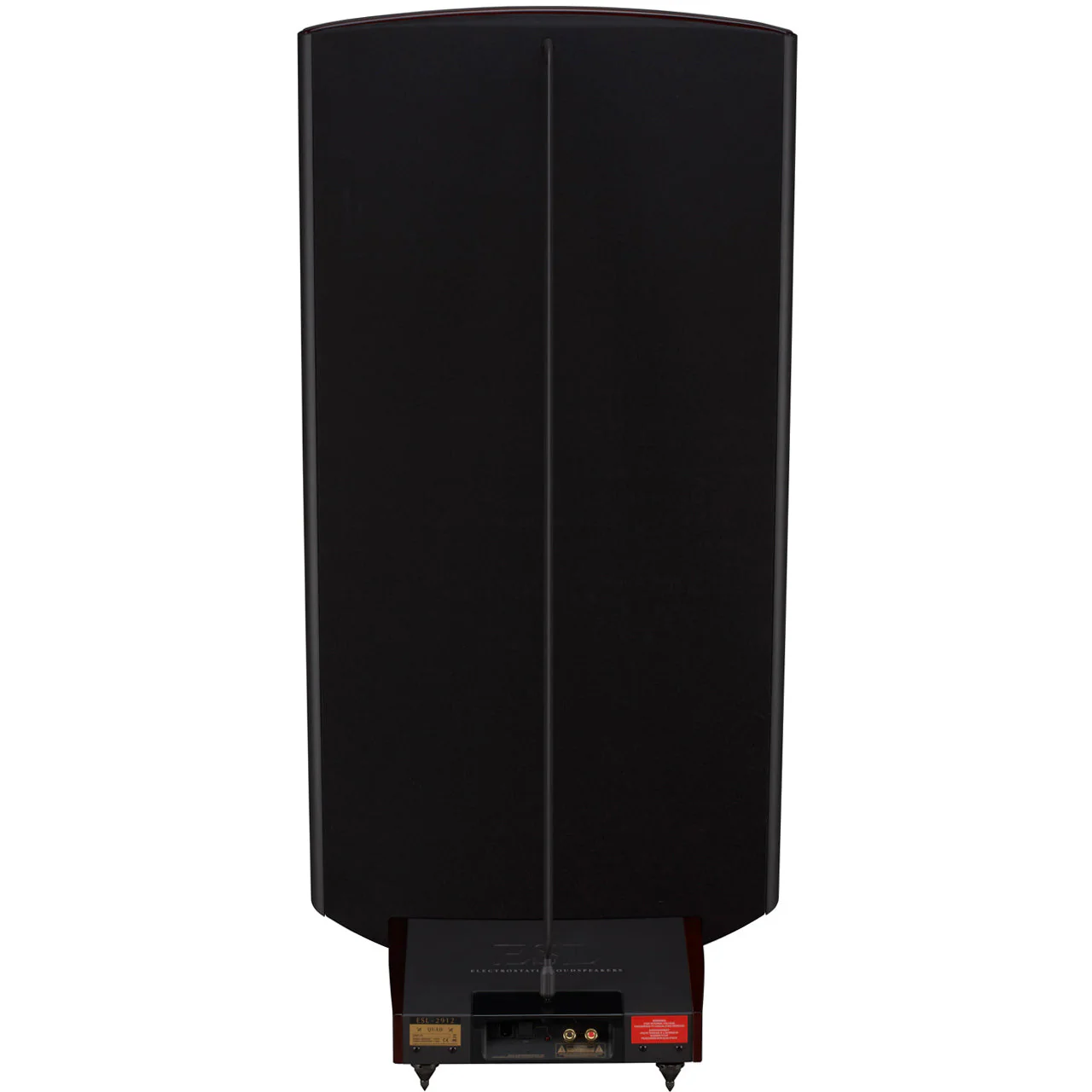

Product image 2

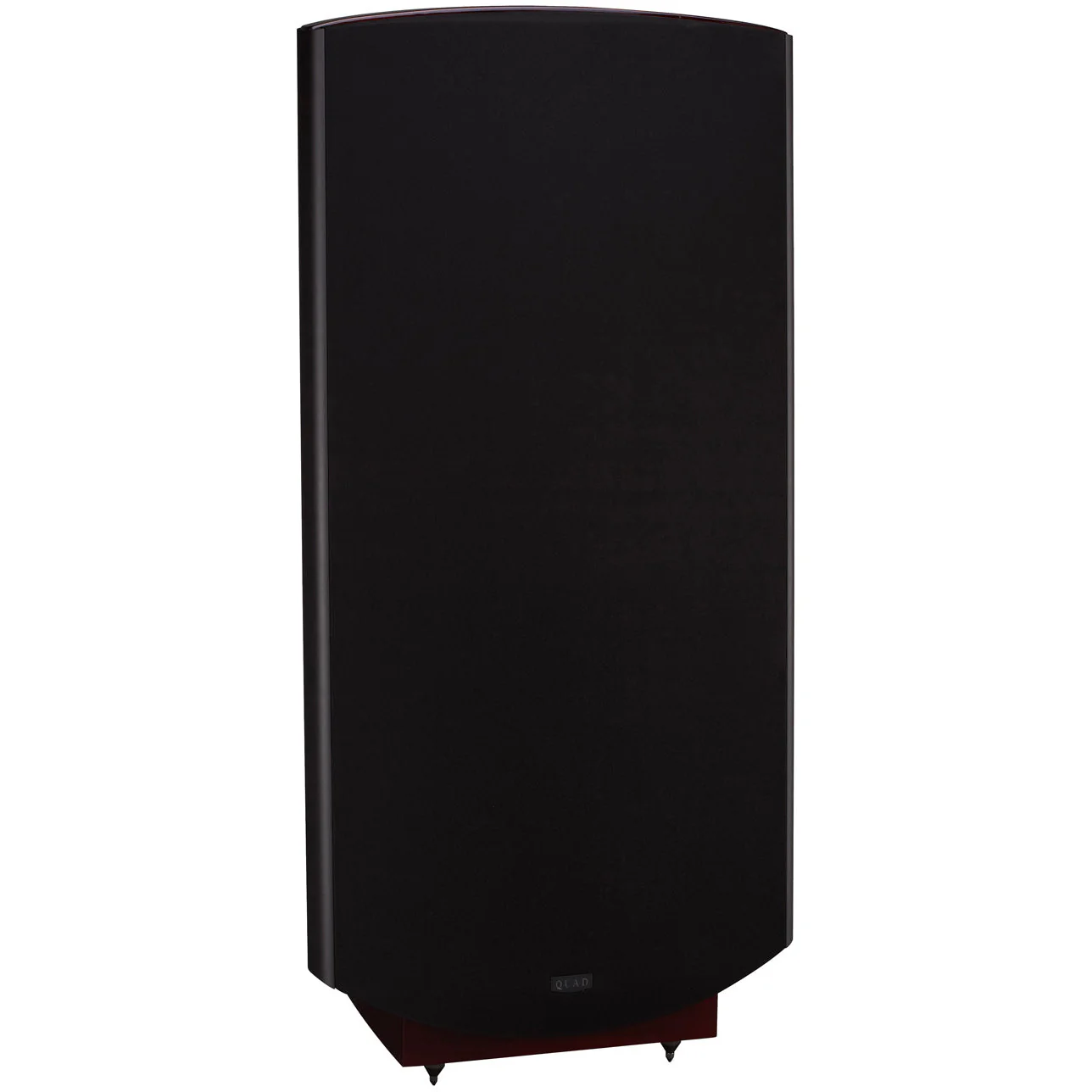

Product image 3

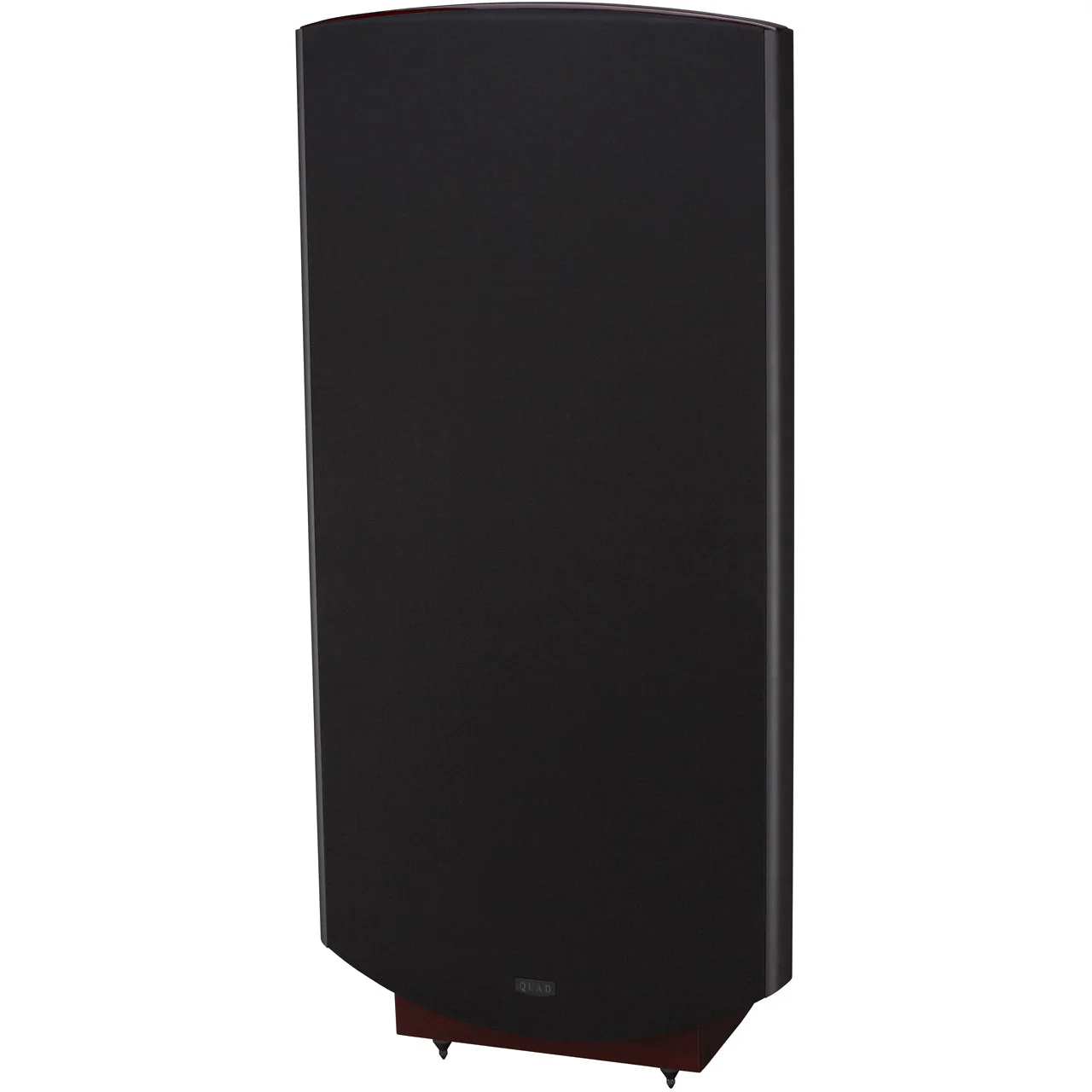

Product image 4
Product image 5

Quad ESL 2912 Electrostatic Loudspeakers

The latest version of our highly acclaimed ESL series, the ESL-2812 and 2912 are a celebration of a classic. Using the signature mylar diaphragm, yet while re-evaluating all circuitry and components, the result is an authentic ESL experience – incredible full range accuracy and startling realism

Specs
Format Floor Standing Dipole with 3 degree Fixed Tilt
Type Multiple Electrostatic Drive Membranes
Time Delay Progressive Concentric Rings
Chassis Structure Heavy Duty Composite Aluminium Steel
Panel Elements 6
Maximum Output 2 N/m_ at 2m On Axis
Sensitivity 1.5mbar Per Volt Referred To 1m
(86 dB / 2.83V RMS Equivalent)
Impedance Variation 4-20 Ohms
Maximum Input Continuous Input Voltage (RMS): 10V
Programme Peak For Undistorted Output: 40V
Permitted Peak Input: 55V
Frequency Response 32Hz - 21kHz (-6dB)
28Hz - 21kHz (useable)
Distortion (100dB at 1m) Above 1000Hz 0.15%
Above 100Hz 0.5%
Above 50Hz 1.0%
$4,586.79

Original: $13,105.11

-65%
Quad ESL 2912 Electrostatic Loudspeakers—

$13,105.11

$4,586.79

Product Information

Shipping & Returns

Description

The latest version of our highly acclaimed ESL series, the ESL-2812 and 2912 are a celebration of a classic. Using the signature mylar diaphragm, yet while re-evaluating all circuitry and components, the result is an authentic ESL experience – incredible full range accuracy and startling realism

Specs
Format Floor Standing Dipole with 3 degree Fixed Tilt
Type Multiple Electrostatic Drive Membranes
Time Delay Progressive Concentric Rings
Chassis Structure Heavy Duty Composite Aluminium Steel
Panel Elements 6
Maximum Output 2 N/m_ at 2m On Axis
Sensitivity 1.5mbar Per Volt Referred To 1m
(86 dB / 2.83V RMS Equivalent)
Impedance Variation 4-20 Ohms
Maximum Input Continuous Input Voltage (RMS): 10V
Programme Peak For Undistorted Output: 40V
Permitted Peak Input: 55V
Frequency Response 32Hz - 21kHz (-6dB)
28Hz - 21kHz (useable)
Distortion (100dB at 1m) Above 1000Hz 0.15%
Above 100Hz 0.5%
Above 50Hz 1.0%
