Nagaoka MP-150 Cartridge

Product image 1
Product image 2
Product image 3

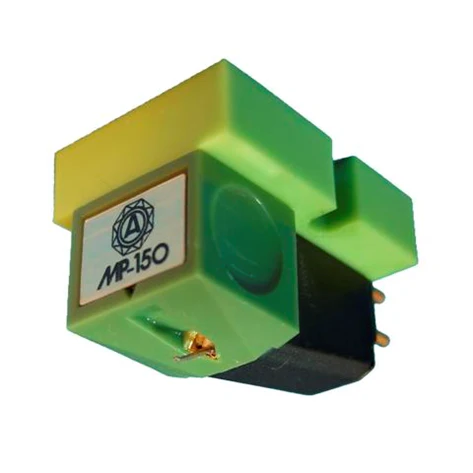

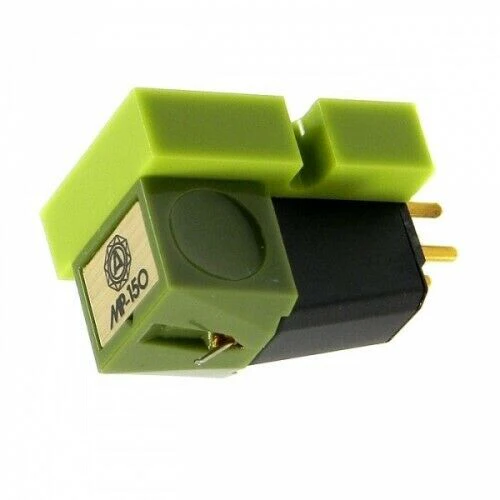

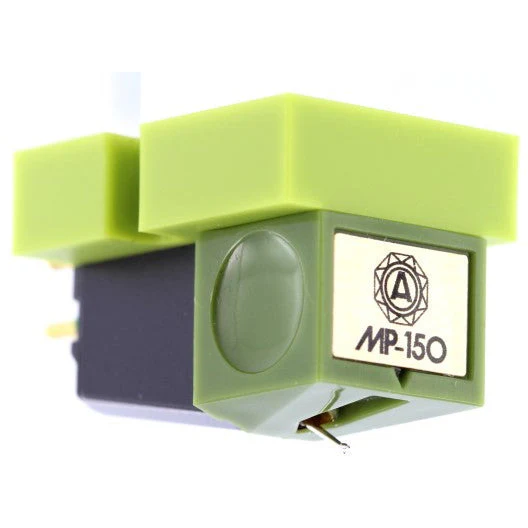

Nagaoka MP-150 Cartridge

The Nagaoka MP-150 phonograph cartridge offers superior clarity, detail and dynamic contrast and offers fine solid bass, superb fluidity across the frequency spectrum, and sweet highs.
Features
-Superfine polished special eliptical diamond stylus
-Powerfull samarium cobalt magnet
-Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs

Model: MP-150 (with stylus)
Type: Magnetodynamic Permalloy
Output Voltage: 4.5mV (5cm/sec)
Frequency Characteristic: 20 - 20,000Hz
Channel Separation: 24dB (1Khz)
Channel Balance: 1.5db or less
Load Resistance: 47kohm
Cantilever: Aluminum Alloy
Stylus Tip: 0.4x0.7mil Elliptical Diamond
Elliptical Stylus Pressure: 1.5 - 2.0g (1.7g)
Cartridge Weight: 6.5g

$188.34

Original: $538.12

-65%
Nagaoka MP-150 Cartridge—

$538.12

$188.34

Product Information

Shipping & Returns

Description

The Nagaoka MP-150 phonograph cartridge offers superior clarity, detail and dynamic contrast and offers fine solid bass, superb fluidity across the frequency spectrum, and sweet highs.
Features
-Superfine polished special eliptical diamond stylus
-Powerfull samarium cobalt magnet
-Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs

Model: MP-150 (with stylus)
Type: Magnetodynamic Permalloy
Output Voltage: 4.5mV (5cm/sec)
Frequency Characteristic: 20 - 20,000Hz
Channel Separation: 24dB (1Khz)
Channel Balance: 1.5db or less
Load Resistance: 47kohm
Cantilever: Aluminum Alloy
Stylus Tip: 0.4x0.7mil Elliptical Diamond
Elliptical Stylus Pressure: 1.5 - 2.0g (1.7g)
Cartridge Weight: 6.5g
