Denafrips Terra Master Clock

Terra is a Master Clock Generator designed for High-End Audio applications. Our design goal was to push the limits of what audio equipment can be.



The quality of the CLOCK is one of the profound elements and foundation of superior sonic performance. The lower the jitter, phase noise, as well as stability of the clock, often, improves the sound quality of the digital audio equipment.

HIGH PRECISION OCXO



Terra is equipped with high precision Oven Controlled Crystal Oscillators (45.1548MHz, 49.152Mhz), powered up by high current multi-stages Linear Power Supply with oversized O-Core Transformer.

Lots of attentions were put in to increase the performance factors of the power supply - low noise, high slew rate and high current. These provide the OCXO adequate DC supply, hence, results in great thermal stability and low level crosstalk.



DESIGNED FOR HIGH END AUDIO

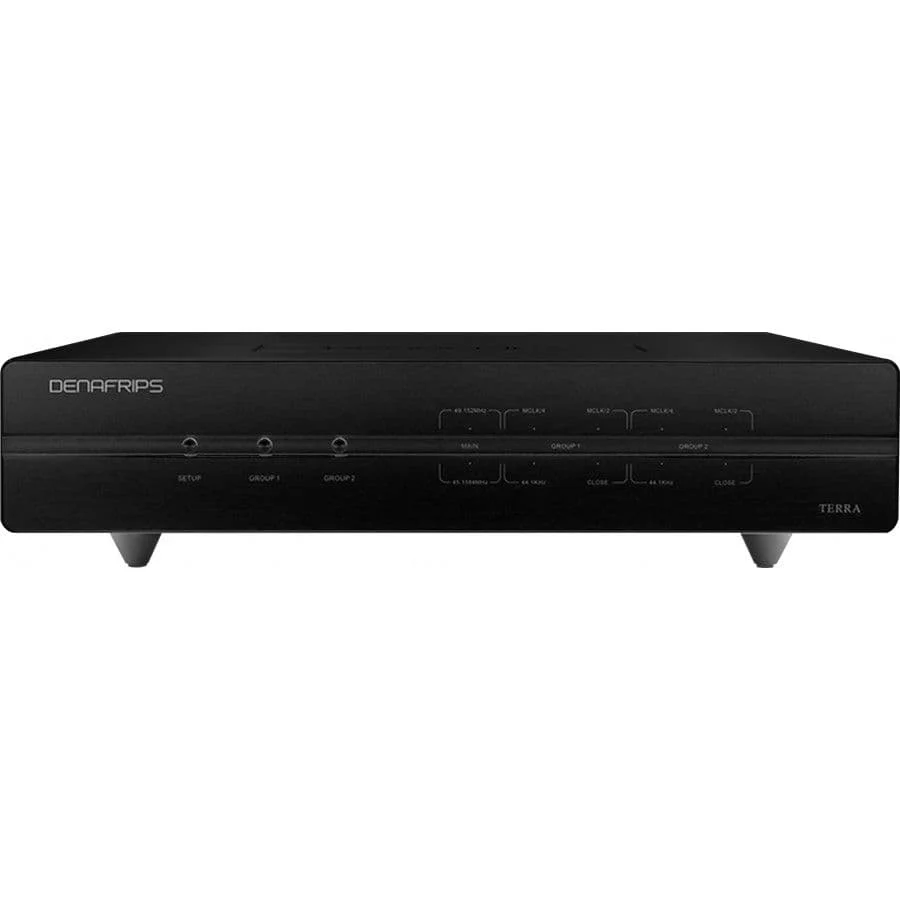

The MCLK1/2/3/4 CLOCK-OUT frequencies are configurable manually by the intuitive front panel to suit various application.

CLOCK OUT (Fixed)

• 45.1584MHz, 49.152MHz

CLOCK OUT (Adj)

• 44.1kHz, 48kHz
• 11.2896MHz, 12.288MHz
• 22.5792MHz, 24.576MHz

Specifications



Product type	Audio clock
Fixed outputs	2x 45.1548MHz 2x 49.152MHz
Adjustable outputs	44.1kHz, 48kHz 11.2896MHz, 12.288MHz 22.5792MHz, 24.576MHz

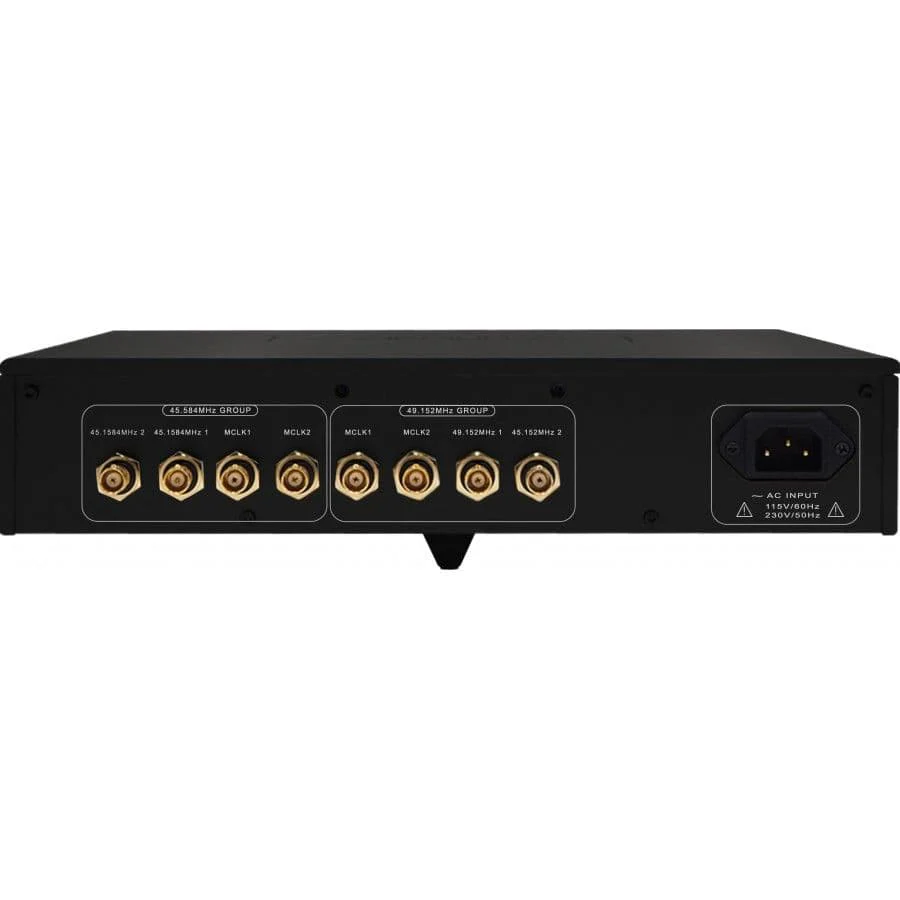

Output connectors	BNC 75Ω
Oscillators	OCXO





GENERAL
Supply voltage	100-240VAC, 50/60Hz (manual selection)
Consumption	≤ 20W
Dimensions	340 x 260 x 66mm
Weight	6kg
Package	1x Denafrips Terra 1x Power cord
